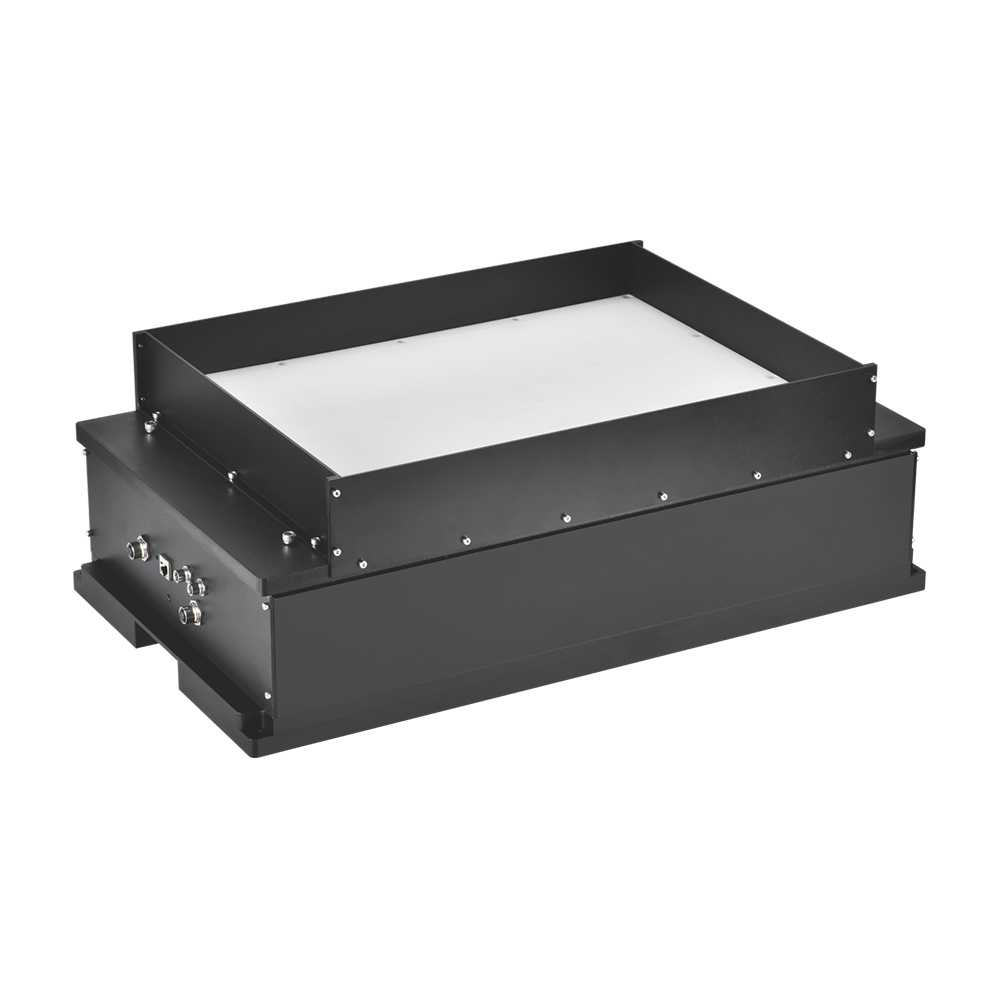

MZ-F500

The size of the MZ-F500 disk is 448X341mm, which is suitable for fine parts of 40-100mm. The structure of the whole machine is modular, and the combined installation is simpler and more beautiful; the weight of the reversible material is less than or equal to 50g, which fully meets the fine and small characteristics of fine parts; the disk surface is made of rigid material race steel, and the good wear resistance makes the fine and small parts not easy to be damaged. Yield rate; the vibration response time is as short as 100-300 ms to complete the vibration dispersion, and the customized material tray (holes, grooves, teeth, wire drawing) based on the shape and structure of the parts is convenient for the automatic orientation and arrangement of disorganized parts.

Modular design: All-aluminum modular body, integrated design of motor, backlight, direct vibration drive control of feeding silo
Product standardization: TOMITION voice coil motor is standard in the whole system, the motor life is more than 5 years, and the vibration parameters of the same type of vibration plate are exactly the same
Simple application: complete vibration debugging and parameter setting within 5 minutes, support network port communication and passive IO control
High stability and high safety: DC24V system, electrical isolation, EMC, multi-waveform combination control, no-load noise less than or equal to 65 decibels

Dimension (LWH)	598345211(mm)
Plate inner size	341*448(mm)
Plate sidewall height	Standard 66mm (customizable)
Weight	27kg
Work voltage	DC24V/10A
Vibration frequency	The working frequency of the same type of vibrating plate is exactly the same, and the working frequency of different materials is exactly the same
Idle run noise	≤65db
Max. load	1.5kg
Max weight of flipable workpiece	≤50g
Cycle time of single action	200-500ms
Movement model	Vibrate vertically, gather, move around in one direction
Back light	Built-in white backlight with adjustable brightness
Control driver board	Built-in driver, circuit isolation, input and output NPN, EMC, multi-wave type control
Communication & interface	TCP/IP passive IO

	Modular design All-aluminum modular body, motor, backlight, feed bin direct vibration drive control integrated design		Simple application Complete vibration debugging and parameter setting within 5 minutes, support network port communication and passive IO control

	Product standardization The whole system comes standard with TOMITION voice coil motor, the motor life is more than 5 years, and the vibration parameters of the same type of vibration plate are exactly the same		High stability and security DC24V system, electrical isolation, EMC, multi-waveform combination control, no-load noise less than or equal to 65 decibels

Application areas: electronics, hardware, plastics, clocks, batteries, food, connectors, medicine, food, toys, stationery, semiconductors, magnetic cores, FPC and other industries.

Applicable shapes: irregular shapes such as sheet, 0, U, L, needle, granule, strip, square, cylinder, tower, cone, etc.

Applicable materials: plastic parts, hardware parts, rubber parts, electronic parts, ceramic parts, silicone parts, stamping parts and other small composite parts.

Applicable materials: springs, USB heads, buttons, snaps, wire harnesses, gaskets, silver contacts, connectors, coils, O-rings, bottle caps, line cards, silicone, skeleton, thimble, positioning pins, antennas, capacitors , Connectors, pin headers, female headers, terminals, dome shrapnel, angle valves, blades, zippers, etc.

Special requirements: surface coating easily damaged parts, oily parts, electroplating parts, etc.


Special-shaped spring automatic flexible feeding	Flexible feeding of special-shaped precision parts	Flexible feeding of powder metallurgy special-shaped plastic parts


Gasket flexible feeding	Mascara flexible feeding	Flexible feeding of mobile phone parts
